Reproduce results in Figure 6

NOTE: Same datasets in Figure 5. Visualizations of figure 6b and c are in figure 5 notebook with section named Visualization for figure 6b,c.

Related dataset:

• Xenium colorectal cancer

• VisiumHD colorectal cancer

Reference of CRC can be downloaded here

VisiumHD colorectal cancer are training with epoch settings: epochs = 400 seg_training_epochs = 15 deconv_warmup_epochs = 200 and Xenium coloretal cancer are training with epochs settings: epochs = 200 seg_training_epochs = 10 deconv_warmup_epochs = 100

All the data for reproducing the result can be downloaded from Zenodo. The data used in this notebook is under the folder figure_6.

import os
# Download the data from the link above to this folder and unzip it, can be changed to your own path
os.chdir("/import/home3/yhchenmath/Dataset/CellARTPaper/figure_6/")

Characterization of TAMs

import pandas as pd
from scipy.sparse import coo_matrix
import squidpy as sq
import matplotlib.pyplot as plt
import numpy as np
import scanpy as sc

adata_svt = sc.read_h5ad("cellart_crc_adata.h5ad")
adata_svt.obsm["spatial"] = adata_svt.obs[["x", "y"]].values

import pandas as pd
from scipy.sparse import coo_matrix
import squidpy as sq

adata = adata_svt.copy()
sq.gr.spatial_neighbors(adata, n_neighs = 100)
sparse_matrix = adata.obsp["spatial_distances"].tocoo()

# Create DataFrame from COO matrix
df_dist = pd.DataFrame({
    "value": sparse_matrix.data,
    "x": sparse_matrix.col,
    "y": sparse_matrix.row
})
df_dist.columns = ["distance", "cell_1_index", "cell_2_index"]

distance_threshold = 100

celltypes = adata.obs["celltype"]

df_dist["cell_1_type"] = celltypes.iloc[df_dist["cell_1_index"]].values
df_dist["cell_2_type"] = celltypes.iloc[df_dist["cell_2_index"]].values

df_close = df_dist[df_dist["distance"] < distance_threshold]

mac_near_tumor = df_close[
    ((df_close["cell_1_type"] == "Macrophage") & (df_close["cell_2_type"].str.startswith("Tumor III"))) |
    ((df_close["cell_2_type"] == "Macrophage") & (df_close["cell_1_type"].str.startswith("Tumor III")))
]

cd4_t_near_tumor = df_close[
    ((df_close["cell_1_type"] == "CD4 T cell") & (df_close["cell_2_type"].str.startswith("Tumor III"))) |
    ((df_close["cell_2_type"] == "CD4 T cell") & (df_close["cell_1_type"].str.startswith("Tumor III")))
]

cd8_t_near_tumor = df_close[
    ((df_close["cell_1_type"] == "CD8 Cytotoxic T cell") & (df_close["cell_2_type"].str.startswith("Tumor III"))) |
    ((df_close["cell_2_type"] == "CD8 Cytotoxic T cell") & (df_close["cell_1_type"].str.startswith("Tumor III")))
]


# All index
mac_tumor_indices = pd.concat([
    mac_near_tumor["cell_1_index"],
    mac_near_tumor["cell_2_index"]
]).drop_duplicates().sort_values()

cd4_tumor_indices = pd.concat([
    cd4_t_near_tumor["cell_1_index"],
    cd4_t_near_tumor["cell_2_index"]
]).drop_duplicates().sort_values()

cd8_tumor_indices = pd.concat([
    cd8_t_near_tumor["cell_1_index"],
    cd8_t_near_tumor["cell_2_index"]
]).drop_duplicates().sort_values()


mac_tumor_cell_names = adata.obs_names[mac_tumor_indices]
# cd4_tumor_cell_names = adata.obs_names[cd4_tumor_indices]
# cd8_tumor_cell_names = adata.obs_names[cd8_tumor_indices]

print(len(mac_tumor_cell_names))

# Only select macrophage and tumor cells
adata_boundary = adata[mac_tumor_cell_names].copy()
# adata_boundary.write_h5ad("/import/home2/yhchenmath/Code/SVTBenchmarking/figure_refined/adata_lr.h5ad")

94616

# Select normal macrophage
adata_normal = adata[adata.obs["celltype"] == "Macrophage"].copy()
# Not in mac_tumor_cell_names
normal_cell_names = adata_normal.obs_names[~adata_normal.obs_names.isin(mac_tumor_cell_names)]
adata_normal = adata_normal[normal_cell_names].copy()

# Select all the tumor cells
tumor_cell_names = adata.obs_names[adata.obs["celltype"].str.startswith("Tumor III")]
adata_tumor = adata[tumor_cell_names].copy()

import anndata

adata_tam = adata_boundary[adata_boundary.obs["celltype"] == "Macrophage"].copy()
adata_tam.obs["celltype"] = "TAM"
adata_normal.obs["celltype"] = "Normal Macrophage"
adata_tumor.obs["celltype"] = "Tumor"

adata_plot = anndata.concat([adata_tam, adata_normal, adata_tumor])
adata_others = adata[~adata.obs_names.isin(adata_plot.obs_names)].copy()
adata_whole = anndata.concat([adata_plot, adata_others])

# Save adata_whole
# adata_whole.write_h5ad("/import/home2/yhchenmath/Code/SVTPaper/figure_5/lr/adata_whole.h5ad")

# Plot
from matplotlib.gridspec import GridSpec
from matplotlib.lines import Line2D
import matplotlib.pyplot as plt

def plot_specific_celltype_gene(adata, mapping_dict, x_col = "x", y_col = "y", s = 3, revert_y = False, revert_x = False, celltype_col = "celltype"):
    fig, ax = plt.subplots(1, 4, figsize=(16, 8))
    for i in range(4):
        ax[i].set_axis_off()
    gs = GridSpec(1, 4, figure=fig)

    ax1 = fig.add_subplot(gs[0, :3])
    ax2 = fig.add_subplot(gs[0, 3])
    # fig, ax1 = plt.subplots(1, 1, figsize=(12, 8))

    plot_dict = {}

    # Mapping dict: "[ct] [gene]"
    for k in mapping_dict:
        ct, gene = k.split(" ")
        ct = ct.replace("_", " ")
        # Select those cells: celltye is ct and gene expression of gene is not zero
        temp_adata = adata[(adata.obs[celltype_col] == ct)]
        if gene != "all":
            temp_adata = temp_adata[temp_adata[:, gene].X > 0]
        else:
            pass
        plot_dict[k] = temp_adata.copy()


    ax1.scatter(adata.obs[y_col], adata.obs[x_col], s=s / 2, color="lightgray")

    for k in plot_dict:
        temp_adata = plot_dict[k]
        ax1.scatter(temp_adata.obs[y_col], temp_adata.obs[x_col], s=s,  alpha=0.4, edgecolor=mapping_dict[k], lw=0.8, label=k, color =mapping_dict[k])
        ax1.scatter(temp_adata.obs[y_col], temp_adata.obs[x_col], s=s,  alpha=1, edgecolor=mapping_dict[k], lw=0.8, label=k, c="none")
    ax1.axis("off")
    ax1.set_xlim(adata.obs[x_col].min(), adata.obs[x_col].max())
    ax1.set_ylim(adata.obs[y_col].min(), adata.obs[y_col].max())
    if revert_x:
        ax1.invert_xaxis()
    if revert_y:
        ax1.invert_yaxis()

    # Add legend elements (example)
    legend_elements = [
        Line2D(
            [0], [0],
            marker='o',
            linestyle='None',
            color='w',
            label=label.replace("_", " ").replace(" all", ""),
            markerfacecolor=color,
            markeredgecolor='k',
            markersize=8
        ) for label, color in mapping_dict.items()
    ]

    # Add the legend below the entire figure, centered horizontally with [0, 1] subfigures
    ax2.legend(
        handles=legend_elements,
        loc='center',                    # Center the legend within the bounding box
        bbox_to_anchor=(0.48, 0.45),       # Center of ax2 (0.5, 0.5 is the middle of the axis)
        ncol=2,                          # Number of columns for the legend
        handletextpad=0.35,               # Spacing between marker and text
        columnspacing=1,               # Spacing between legend columns
        prop={'size': 12, 'style': 'italic'},  # Font size and style
        frameon=False                    # No border for the legend
    )

    ax2.axis("off")  # Hide the axis for ax2
    # Adjust layout to prevent overlap
    plt.tight_layout(rect=[0, 0.15, 1, 1])  # Leave space for the legend below the plots
    plt.show()

    return plot_dict

mapping_dict = {
    "Others all": "lightgray",
    "Normal_Macrophage all": "#009EFA",
    "TAM all": "#FF5835",
    "Tumor all": "#F4AD2A",

}
adata_others_temp = adata_others.copy()
adata_others_temp.obs["celltype"] = "Others"
adata_combined = anndata.concat([adata_plot, adata_others_temp])

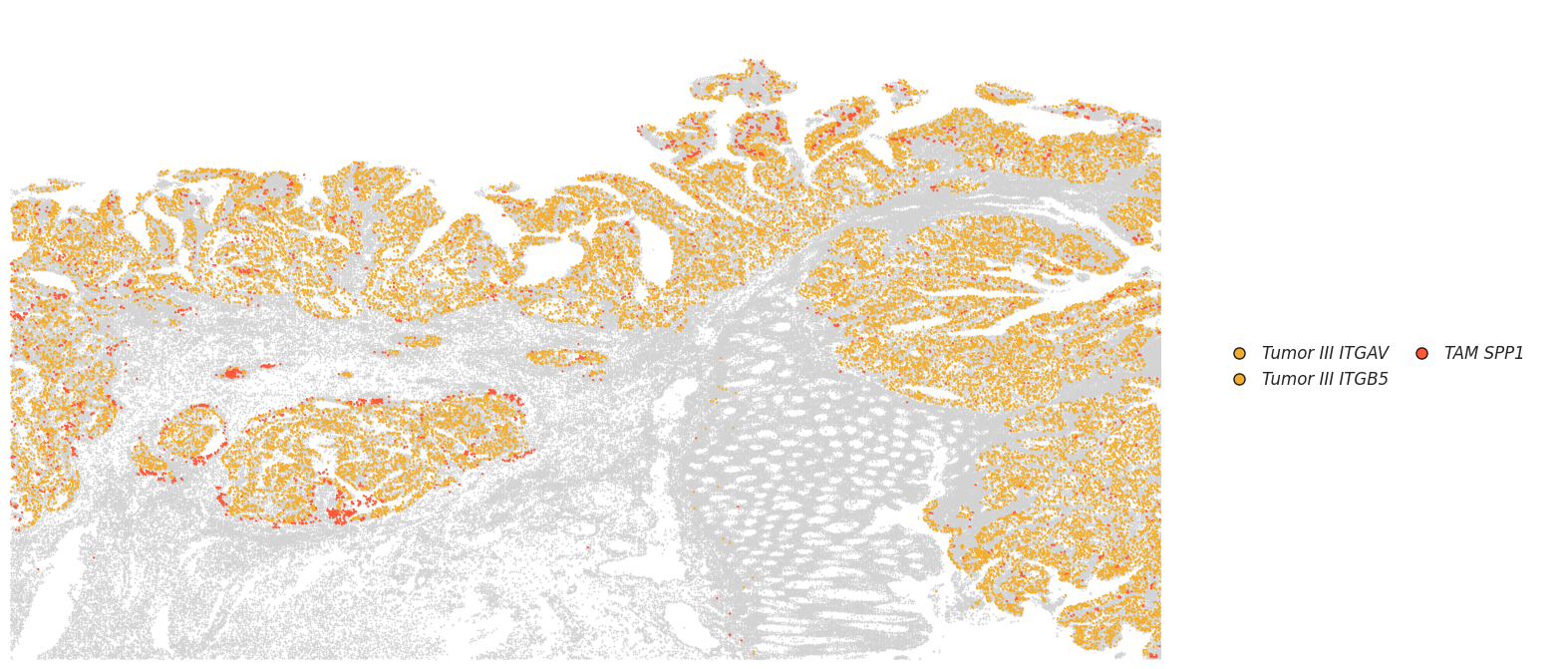

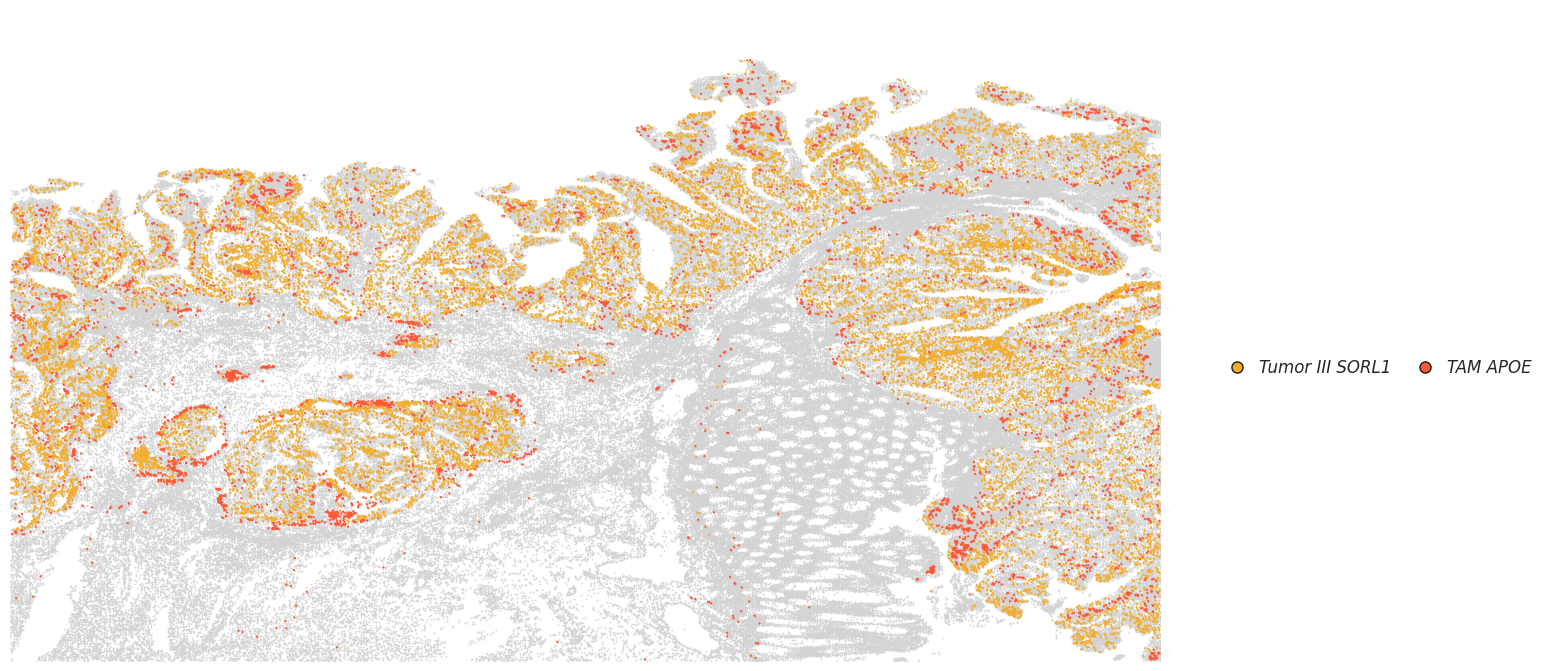

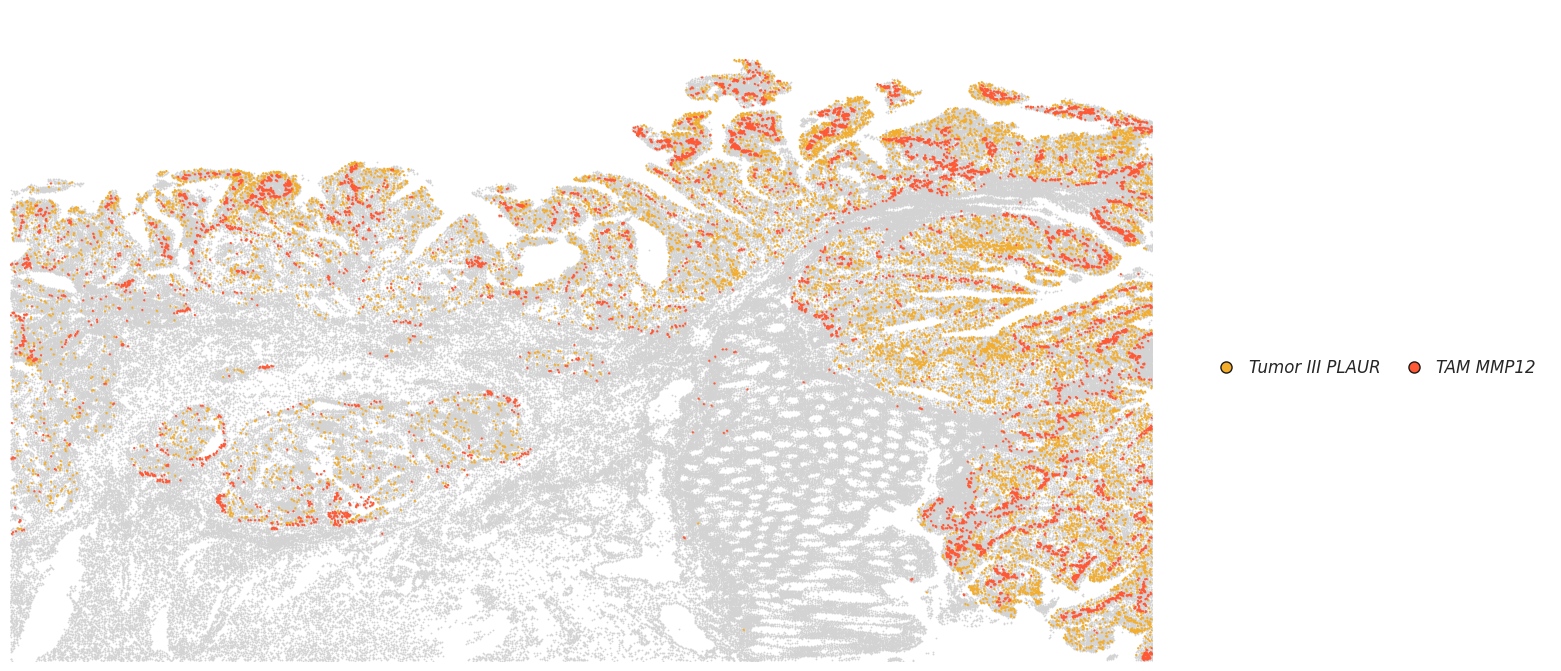

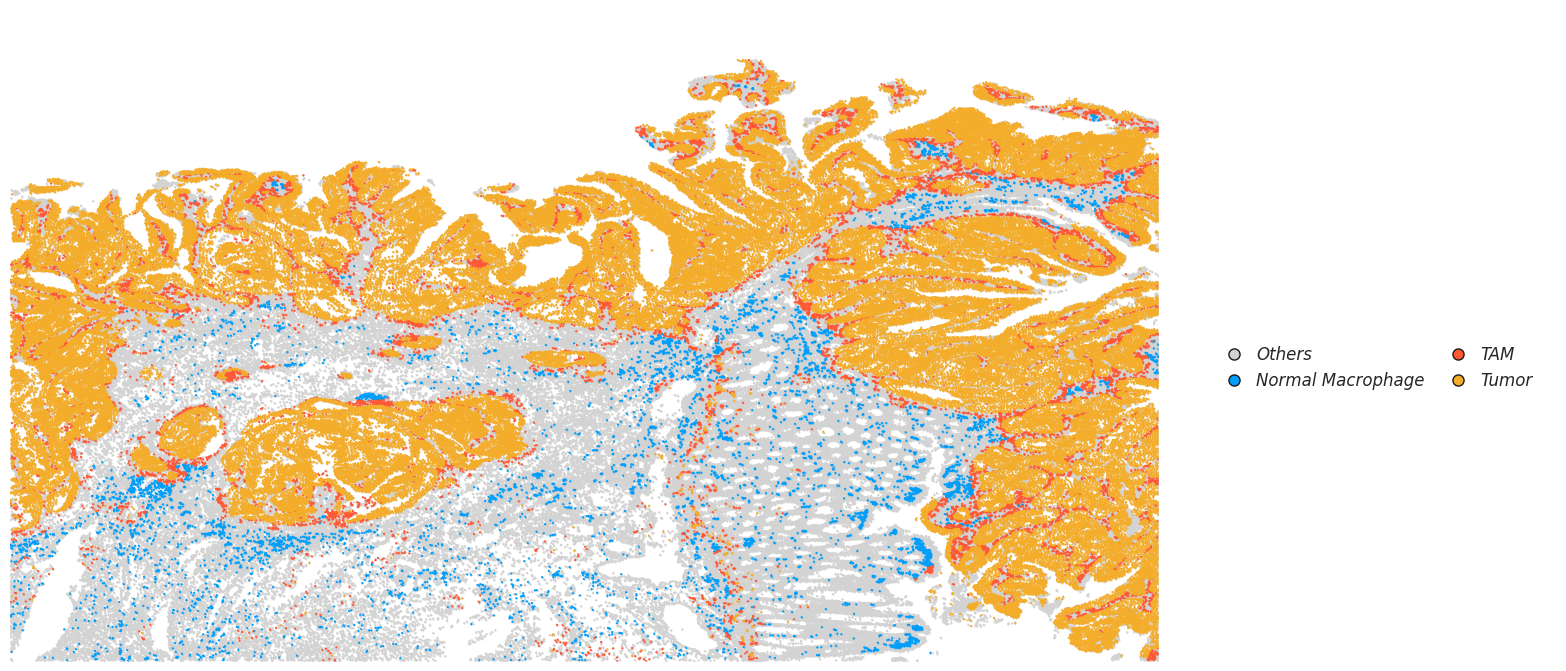

_ = plot_specific_celltype_gene(adata_combined, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

selected_gene = [
    "MMP12","CTSB", "COL3A1", "IFI30", "COL1A1", "PSAP", "APOE", "C1QA",  "C1QB", "SRGN", "SPARC"
    ,"SAT1", "SOD2", "HIST1H1C", "KRT8", "ELF3", "PRSS23", "MYC", "SELENBP1", "SPP1"
]

gene_list = selected_gene
# As type categorical
adata_plot.obs['celltype'] = adata_plot.obs['celltype'].astype('category')

adata_plot.obs['celltype'] = adata_plot.obs['celltype'].cat.reorder_categories(
    ["Normal Macrophage", "TAM", "Tumor"],
    ordered=True  # optional
)
adata_plot.uns["celltype_colors"] = ["#6297CA", "#FF5733", "#FFA500"]
# Only show invasive tumor and Prolif Invasive Tumor

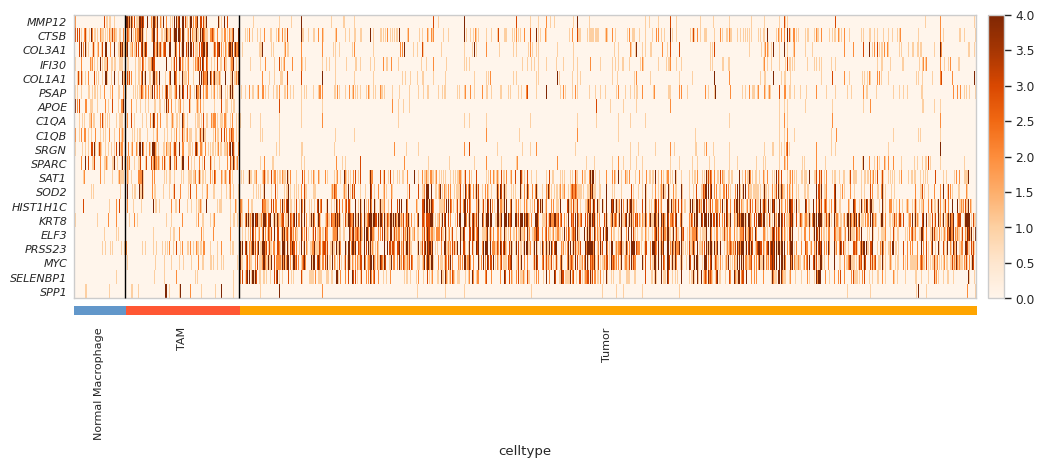

hm = sc.pl.heatmap(adata_plot, gene_list, groupby='celltype', cmap='Oranges', show_gene_labels=True, vmax=4, swap_axes=True, show=False, figsize=(12,4))
ax = hm['heatmap_ax']
for l in ax.get_yticklabels():
    l.set_style("italic")

# Show with high dpi
plt.show(block=True)

import scanpy as sc
from collections.abc import Iterable
from typing import Union, List
import itertools
from mpl_toolkits.axes_grid1 import make_axes_locatable
from matplotlib import pyplot as plt
import math
from pathlib import Path
# from sg_utils.pl.utils import lighten_color

def format_ax(
    fig, ax,
    style="umap",
    title="",
    cbar=True,
    dim_label="UMAP",
    fs=12,
    lw=1.5,
    arrow_len=0.2,
    draw_arrows=True,
):
    ax.set_facecolor('white')
    ax.set_xticklabels([])
    ax.set_yticklabels([])
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)
    ax.grid(False)
    ax.spines[list(ax.spines)].set_visible(False)

    if style == "umap":
        change_aspect(ax)
        if draw_arrows:
            arrowed_spines(ax, arrow_len, text=dim_label, fs=fs, lw=lw)
        ax.set_title(title, weight="bold")
    if cbar:
        format_cbar(fig, ax)


def format_cbar(fig, ax):

    cbar = ax.get_children()[0].colorbar
    if cbar:
        cbar.remove()
    data = ax.get_children()[0]

    # Create colorbar ax
    bbox = ax.get_position()
    cax = fig.add_axes([
        bbox.x1+bbox.width*0.025, #min x
        bbox.y0+bbox.height*0.25, #min y
        bbox.width*0.03, #width
        bbox.height*0.5 #height
    ])
    cax.grid(False)
    new_cbar = fig.colorbar(
        data, ax=ax, cax=cax,
    )
    new_cbar.outline.set_visible(False)
    if not cbar:
        bbox = ax.get_position()
        ax.get_children()[0].colorbar.remove()
        ax.set_position(bbox)


def change_aspect(ax):

    # Reset x and y limits for square plotting
    xmin, xmax = ax.get_xlim()
    xrange = xmax - xmin
    xcenter = (xrange/2) + xmin

    ymin, ymax = ax.get_ylim()
    yrange = ymax - ymin
    ycenter = (yrange/2) + ymin

    axrange = max(xrange, yrange)/2

    xmin = xcenter - (axrange)
    xmax = xcenter + (axrange)
    ax.set_xlim(xmin, xmax)

    ymin = ycenter - (axrange)
    ymax = ycenter + (axrange)
    ax.set_ylim(ymin, ymax)

    ax.set_aspect('equal', adjustable = 'box')


def arrowed_spines(
    ax,
    length = 0.2,
    text = None,
    fs = None,
    lw = 1.5,
):
    xmin, xmax = ax.get_xlim()
    ymin, ymax = ax.get_ylim()

    hw = 1./30.*(ymax-ymin)
    hl = 1./30.*(xmax-xmin)
    lw = lw # axis line width
    ohg = 0.0 # arrow overhang

    ax.spines[list(ax.spines)].set_visible(False)
    ax.arrow(
        xmin, ymin, (xmax-xmin)*length, 0, fc='k', ec='k', lw = lw,
        head_width=hw, head_length=hl, overhang = ohg,
        length_includes_head= True, clip_on = False
    )
    ax.arrow(
        xmin, ymin, 0, (ymax-ymin)*length, fc='k', ec='k', lw = lw,
        head_width=hw, head_length=hl, overhang = ohg,
        length_includes_head= True, clip_on = False
    )
    if fs == None:
        fs = plt.rcParams["xtick.labelsize"]
    ax.text(
        s=f"{text}1",
        y=ymin-(ymax-ymin)*0.05, x=xmin+(xmax-xmin)*length/2,
        ha="center", va="top",
        fontsize = fs
    )
    ax.text(
        s=f"{text}2",
        x=xmin-(xmax-xmin)*0.05, y=ymin+(ymax-ymin)*length/2,
        ha="right", va="center", rotation=90,
        fontsize = fs
    )
    ax.set_xlim(xmin, xmax)
    ax.set_ylim(ymin, ymax)


def plot_embedding(
    adata: sc.AnnData,
    features: Union[str, List[str]],
    basis: str = 'X_umap',
    palette: str = "tab20",
    cmap: str = "plasma",
    titles: Union[str, List[str]] = None,
    ncols: int = 5,
    dim: int = 5,
    layer: str = "imputed",
    dim_label = "UMAP",
    ax = None,
    fs: int = 12,
    lw: float = 1.5,
    arrow_len: float = 0.2,
    draw_arrows=False,
    rasterized=False,
    cbar=True,
    **kwargs,
):
    iterify = lambda x: x if isinstance(x, Iterable) and not isinstance(x, str) else [x]
    features = iterify(features)
    titles = iterify(titles)
    if not ax:
        nrows = math.ceil(len(features))
        fig, axes = plt.subplots(
            nrows, ncols,
            figsize=(dim*ncols,dim*nrows),
        )
        fig.tight_layout(pad=dim*0.75)
        axes = axes.flat if isinstance(axes, Iterable) else [axes]
    else:
        assert (len(features)==1) and (len(titles)==1)
        fig = ax.get_figure()
        axes = [ax]
    for ax, feature, title in itertools.zip_longest(axes, features, titles):
        if not title: title = feature
        if feature:
            sc.pl.embedding(
                adata,
                basis=basis,
                color=feature,
                ax=ax,
                show=False,
                palette=palette, cmap=cmap,
                layer=layer,
                colorbar_loc=None,
                **kwargs,
            )
            if rasterized:
                ax.get_children()[0].set_rasterized(True)
            format_ax(
                fig, ax, style="umap",
                title=title, dim_label=dim_label, fs=fs,
                arrow_len=arrow_len, lw=lw, draw_arrows=draw_arrows,
            )
        else:
            ax.set_visible(False)
    return fig


def saturate(c, s=1.0):
    from matplotlib import colors
    from collections.abc import Iterable
    # Assumed to be hex if string
    if isinstance(c, str):
        rgb = colors.to_rgb(c)
        hex = True
    # Assumed to be RGB if iterable
    elif isinstance(c, Iterable):
        rgb = c
        hex = False
    hsv = colors.rgb_to_hsv(rgb)
    hsv[1] *= s
    c = colors.hsv_to_rgb(hsv)
    if hex:
        return colors.to_hex(c)
    else:
        return c

ad_st = adata_plot.copy()
# Filtered min counts
sc.pp.filter_genes(ad_st, min_counts=20)

sc.pp.pca(ad_st)
sc.pp.neighbors(ad_st)

sc.tl.umap(ad_st, min_dist=0.3)

celltype_mapping = {
    "Normal Macrophage": "#009EFA",
    "TAM": "#FF5835",
    "Tumor": "#F4AD2A",

}
fig, ax = plt.subplots(1, 1, figsize = (3,3))
_ = plot_embedding(
    ad_st,
    features='celltype',
    basis="X_umap",
    palette=celltype_mapping,
    ax=ax,
    dim_label="UMAP",
    fs=12,
    lw=1.5,
    arrow_len=0.2,
    draw_arrows=True,
    # Other
    legend_loc = "none",
    size = 3
)

import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
sns.set_style("whitegrid")
# selected_gene = "COL3A1" # Tumor+, Boundary +

# selected_gene = "PSAP" # Boundary +, HD Only

# Set color mapping
palette = {
    "Tumor": "#F4AD2A",
    "Normal Macrophage": "#76A3D0",      # white violin (no fill)
    "TAM": "#FF5835"
}

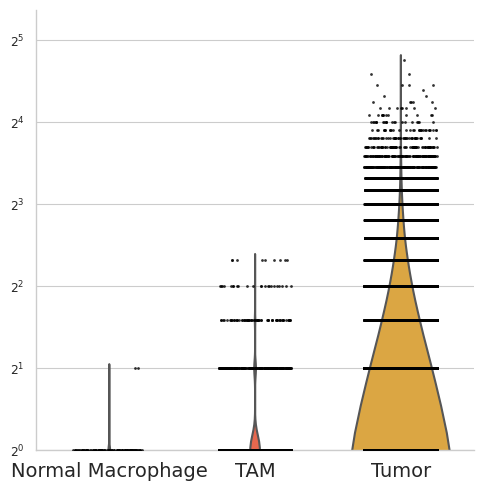

selected_gene = "MYC"

df = pd.DataFrame({
    "group": adata_plot.obs["celltype"].astype(str),
    "value": adata_plot[:, selected_gene].X.flatten()
})

plot_order = ["Normal Macrophage", "TAM", "Tumor"]
# Plot
plt.figure(figsize=(5, 5))
ax = sns.violinplot(
    x="group",
    y="value",
    data=df,
    order=plot_order,
    scale="width",
    inner=None,
    linewidth=1.5,
    palette=palette,
    bw=0.3
)

# Overlay dot strip
sns.stripplot(
    x="group",
    y="value",
    order=plot_order,
    data=df,
    color="black",
    size=2,
    jitter=0.25,
    alpha=0.8
)

# Log scale y-axis
ax.set_yscale("log", base=2)
ax.set_ylim(bottom=1)  # Set y-axis limits to avoid log scale issues
# ax.set_yticks([1, 3, 10, 30])
# ax.set_yticklabels(["1", "3", "10", "30"], fontsize=12)


# Customize spines and ticks
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.tick_params(axis='x', labelsize=14)
ax.set_xlabel("")
ax.set_ylabel("")

# Bold gene label title
plt.title("")

plt.tight_layout()
plt.show()

/tmp/ipykernel_1057144/3781531446.py:11: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

/tmp/ipykernel_1057144/3781531446.py:11: FutureWarning:

The `scale` parameter has been renamed and will be removed in v0.15.0. Pass `density_norm='width'` for the same effect.
/tmp/ipykernel_1057144/3781531446.py:11: FutureWarning:

The `bw` parameter is deprecated in favor of `bw_method`/`bw_adjust`.
Setting `bw_method=0.3`, but please see docs for the new parameters
and update your code. This will become an error in seaborn v0.15.0.

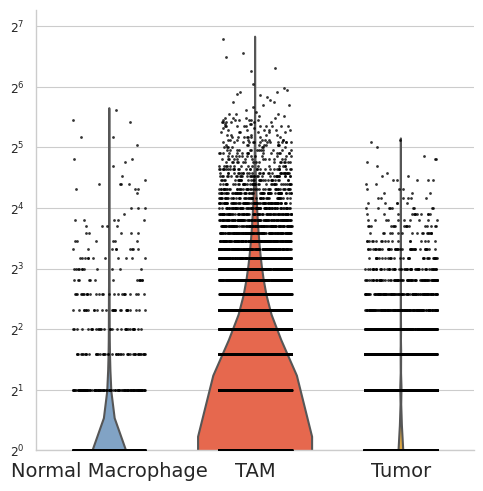

selected_gene = "MMP12"

df = pd.DataFrame({
    "group": adata_plot.obs["celltype"].astype(str),
    "value": adata_plot[:, selected_gene].X.flatten()
})

plot_order = ["Normal Macrophage", "TAM", "Tumor"]
# Plot
plt.figure(figsize=(5, 5))
ax = sns.violinplot(
    x="group",
    y="value",
    data=df,
    order=plot_order,
    scale="width",
    inner=None,
    linewidth=1.5,
    palette=palette,
    bw=0.3
)

# Overlay dot strip
sns.stripplot(
    x="group",
    y="value",
    order=plot_order,
    data=df,
    color="black",
    size=2,
    jitter=0.25,
    alpha=0.8
)

# Log scale y-axis
ax.set_yscale("log", base=2)
ax.set_ylim(bottom=1)  # Set y-axis limits to avoid log scale issues
# ax.set_yticks([1, 3, 10, 30])
# ax.set_yticklabels(["1", "3", "10", "30"], fontsize=12)


# Customize spines and ticks
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.tick_params(axis='x', labelsize=14)
ax.set_xlabel("")
ax.set_ylabel("")

# Bold gene label title
plt.title("")

plt.tight_layout()
plt.show()

/tmp/ipykernel_1057144/639527426.py:11: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

/tmp/ipykernel_1057144/639527426.py:11: FutureWarning:

The `scale` parameter has been renamed and will be removed in v0.15.0. Pass `density_norm='width'` for the same effect.
/tmp/ipykernel_1057144/639527426.py:11: FutureWarning:

The `bw` parameter is deprecated in favor of `bw_method`/`bw_adjust`.
Setting `bw_method=0.3`, but please see docs for the new parameters
and update your code. This will become an error in seaborn v0.15.0.

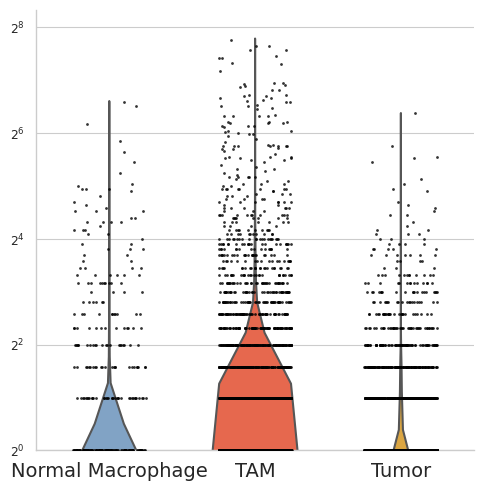

selected_gene = "SPP1"

df = pd.DataFrame({
    "group": adata_plot.obs["celltype"].astype(str),
    "value": adata_plot[:, selected_gene].X.flatten()
})

plot_order = ["Normal Macrophage", "TAM", "Tumor"]
# Plot
plt.figure(figsize=(5, 5))
ax = sns.violinplot(
    x="group",
    y="value",
    data=df,
    order=plot_order,
    scale="width",
    inner=None,
    linewidth=1.5,
    palette=palette,
    bw=0.3
)

# Overlay dot strip
sns.stripplot(
    x="group",
    y="value",
    order=plot_order,
    data=df,
    color="black",
    size=2,
    jitter=0.25,
    alpha=0.8
)

# Log scale y-axis
ax.set_yscale("log", base=2)
ax.set_ylim(bottom=1)  # Set y-axis limits to avoid log scale issues
# ax.set_yticks([1, 3, 10, 30])
# ax.set_yticklabels(["1", "3", "10", "30"], fontsize=12)


# Customize spines and ticks
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.tick_params(axis='x', labelsize=14)
ax.set_xlabel("")
ax.set_ylabel("")

# Bold gene label title
plt.title("")

plt.tight_layout()
plt.show()

/tmp/ipykernel_1057144/1361498247.py:11: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

/tmp/ipykernel_1057144/1361498247.py:11: FutureWarning:

The `scale` parameter has been renamed and will be removed in v0.15.0. Pass `density_norm='width'` for the same effect.
/tmp/ipykernel_1057144/1361498247.py:11: FutureWarning:

The `bw` parameter is deprecated in favor of `bw_method`/`bw_adjust`.
Setting `bw_method=0.3`, but please see docs for the new parameters
and update your code. This will become an error in seaborn v0.15.0.

Legend receptor

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import cmasher as cmr

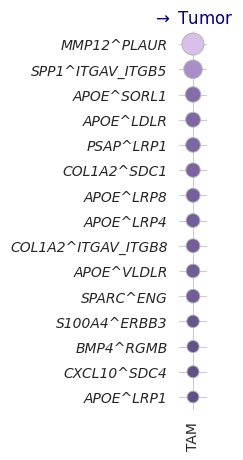

def lr_heatmap_mag_target(lr_res, sources, target, filter_thres1s, filter_thres2s, n_top_orders,
                          source_names=None, target_name=None,
                          add_lrs=None, cmap_lr=None, leg_bbox=None, mx=None, my=None, rot_x=90):

    order_metric = 'magnitude_rank'
    filter_metric1 = 'magnitude_rank'
    filter_metric2 = 'magnitude_rank'

    keep_cols = ['lr', 'source', 'target', 'magnitude_rank']
    dfs = []
    for i, source in enumerate(sources):
        df = lr_res.loc[(lr_res.source==source)&(lr_res.target==target)]
        df0 = df.loc[(df[filter_metric1]<=filter_thres1s[i])&(df[filter_metric2]<=filter_thres2s[i])]
        df_ = df0[keep_cols].sort_values(order_metric).head(n_top_orders[i])
        lrs_ = df_.lr.values.tolist()
        df_ = lr_res.loc[(lr_res.lr.isin(lrs_))&(lr_res.source.isin(sources))&(lr_res.target==target)][keep_cols]
        print(source, len(lrs_), df_.shape)
        if add_lrs is not None:
            for lr in add_lrs:
                if lr not in df_.lr.values:
                    if lr in df.lr.values:
                        df_ = pd.concat([df_, df.loc[df.lr==lr][keep_cols]])
                    else:
                        df_ = pd.concat([df_, pd.DataFrame([[lr, source, target, 1, 1]], columns=keep_cols)])
        df_ = df_.sort_values(order_metric)
        dfs.append(df_)
    concat_df = pd.concat(dfs).drop_duplicates()
    print(len(concat_df), concat_df.lr.unique().shape)

    spec_long = concat_df[['lr', 'source', 'magnitude_rank']]
    spec_wide = spec_long.pivot(index='lr', columns='source', values='magnitude_rank').fillna(1)
    spec_wide['min'] = spec_wide.min(1)
    spec_wide = spec_wide.sort_values('min')
    spec_wide = spec_wide.iloc[:,:len(sources)]
    mag_long = concat_df[['lr', 'source', 'magnitude_rank']]
    mag_wide = mag_long.pivot(index='lr', columns='source', values='magnitude_rank').fillna(1)
    mag_wide['min'] = mag_wide.min(1)
    mag_wide = mag_wide.sort_values('min')
    mag_wide = mag_wide.iloc[:,:len(sources)]
    print('Combine:', len(mag_wide))
    mag_df = mag_wide.stack().reset_index(name='mag')
    spec_df = spec_wide.stack().reset_index(name='spec')
    mag_spec_df = mag_df.merge(spec_df, on=['lr', 'source'])
    mag_spec_df['mag'] = -np.log10(mag_spec_df['mag'].values)
    mag_spec_df['spec'] = -np.log10(mag_spec_df['spec'].values)
    mag_spec_df['source'] = pd.Categorical(mag_spec_df['source'], categories=sources)


    ## heatmap
    plt.rcParams.update({"figure.dpi": 100})
    sns.set_theme(style="whitegrid")
    sns.set_context('paper',font_scale=1.)
    # cmap_lr = cmr.get_sub_cmap(mpl.cm.magma, 0.05,0.95)
    if cmap_lr is None:
        cmap_lr = cmr.get_sub_cmap(sns.cubehelix_palette(rot=0.1, dark=0.2, light=0.8, as_cmap=True, reverse=True), 0, 1)

    if source_names is None:
        source_names = sources
    xticklabels = source_names
    fs = 10
    w = 3
    h = 0.3 * len(mag_wide)
    if mx is None or my is None:
        mx = 0.5/(len(sources)-1) if len(sources) > 1 else 5
        my = 0.5/(len(mag_wide)-1)
    sizes = (10, 250)
    hue_max = mag_spec_df['spec'].max()
    size_max = mag_spec_df['mag'].max()
    g = sns.relplot(
        data=mag_spec_df,
        x="source", y="lr", hue="spec", size="mag",
        palette=cmap_lr, hue_norm=(0,hue_max), size_norm=(0,size_max), edgecolor=".7",
        height=h, aspect=1, sizes=sizes, legend=True,
    )
    if target_name is None:
        target_name = target
    title = f'$\\rightarrow$ {target_name}'
    g.set(xlabel="", ylabel="", xticklabels=xticklabels, title=None, aspect='equal')
    g._axes[0][0].set_title(title, fontsize=fs+2, color='darkblue')
    g.set_xticklabels(size = fs, rotation=rot_x)
    g.set_yticklabels(size = fs, style='italic')
    g.despine(left=True, bottom=True)
    g.ax.margins(x=mx, y=my)
    if leg_bbox is not None:
        for i in range(len(g._legend.texts)):
            if g._legend.texts[i].get_text() == 'spec':
                g._legend.texts[i].set_text('Spec.')
            if g._legend.texts[i].get_text() == 'mag':
                g._legend.texts[i].set_text('Mag.')
        sns.move_legend(
            g, "center", bbox_to_anchor=leg_bbox, fontsize=fs, ncols=1, frameon=False, alignment='left',
        )
    else:
        g._legend.remove()

    return concat_df


import liana as li


adata = adata_boundary.copy()

expr_prop = 0.05
lrTAM = li.mt.rank_aggregate(adata,
                     groupby='celltype',
                     resource_name='consensus',
                     expr_prop=expr_prop,
                     use_raw=False,
                     verbose=True,
                     inplace=False)

Using resource `consensus`.
Using `.X`!
Converting to sparse csr matrix!
/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/anndata/_core/anndata.py:522: FutureWarning: The dtype argument is deprecated and will be removed in late 2024.
74 samples of mat are empty, they will be removed.
Make sure that normalized counts are passed!
/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/liana/method/_pipe_utils/_pre.py:153: FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
0.59 of entities in the resource are missing from the data.

Generating ligand-receptor stats for 94616 samples and 568 features

/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/liana/method/sc/_liana_pipe.py:262: ImplicitModificationWarning: Setting element `.layers['scaled']` of view, initializing view as actual.

Assuming that counts were `natural` log-normalized!

/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/liana/method/sc/_liana_pipe.py:360: RuntimeWarning: overflow encountered in power

Running CellPhoneDB

100%|██████████████████████████████████████████████████████████████████████████████| 1000/1000 [00:58<00:00, 16.98it/s]

Running Connectome
Running log2FC
Running NATMI
Running SingleCellSignalR

lrTAM['lr'] = lrTAM[['ligand_complex', 'receptor_complex']].agg('^'.join, axis=1)

# Mapping source / target names: Macrophage -> TAM, Tumor -> Tumor, CD8 Cytotoxic T cell -> CD8 T cell
lrTAM.source = lrTAM.source.replace({'Macrophage': 'TAM'})
lrTAM.target = lrTAM.target.replace({'CD8 Cytotoxic T cell': 'CD8 T cell'})
lrTAM.target = lrTAM.target.replace({'Tumor III': 'Tumor'})

# Exclude: source is TAM and lr starts with COL1A1 (cancer associated fibroblast ligands, due to diffusion)
lrTAM = lrTAM[~((lrTAM.source == 'TAM') & (lrTAM.ligand_complex.str.startswith('COL1A1')))]

temp = lr_heatmap_mag_target(lrTAM,
                      sources=['TAM'],
                      target='Tumor',
                      filter_thres1s=[1,1],
                      filter_thres2s=[1,1],
                      n_top_orders=[15]*3,
                      leg_bbox=None)

TAM 15 (15, 4)
15 (15,)
Combine: 15

/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/seaborn/axisgrid.py:123: UserWarning: The figure layout has changed to tight
/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/seaborn/axisgrid.py:44: UserWarning: FixedFormatter should only be used together with FixedLocator

raw_ct = adata_svt.obs["celltype"].copy().astype(str)
# TAM index
tam_idx = adata[adata.obs["celltype"].isin(["Macrophage"])].obs_names
raw_ct[tam_idx] = "TAM"

adata_svt.obs["celltype"] = raw_ct.astype("category")

mapping_dict = {
    "Tumor_III PLAUR":  "#F4AD2A", # ""SDC1"
    "TAM MMP12": "#FF5835",
}

temp = plot_specific_celltype_gene(adata_svt, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

mapping_dict = {
    "Tumor_III ITGAV": "#F4AD2A",
    "Tumor_III ITGB5": "#F4AD2A",
    "TAM SPP1": "#FF5835",
}

temp = plot_specific_celltype_gene(adata_svt, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

mapping_dict = {
    "Tumor_III SORL1": "#F4AD2A",
    "TAM APOE": "#FF5835",
}

temp = plot_specific_celltype_gene(adata_svt, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

Visualization for figure 5 g

mapping_dict = {
    "Macrophage SPP1": "#FF0000",
    "Tumor_III all": "grey",
}

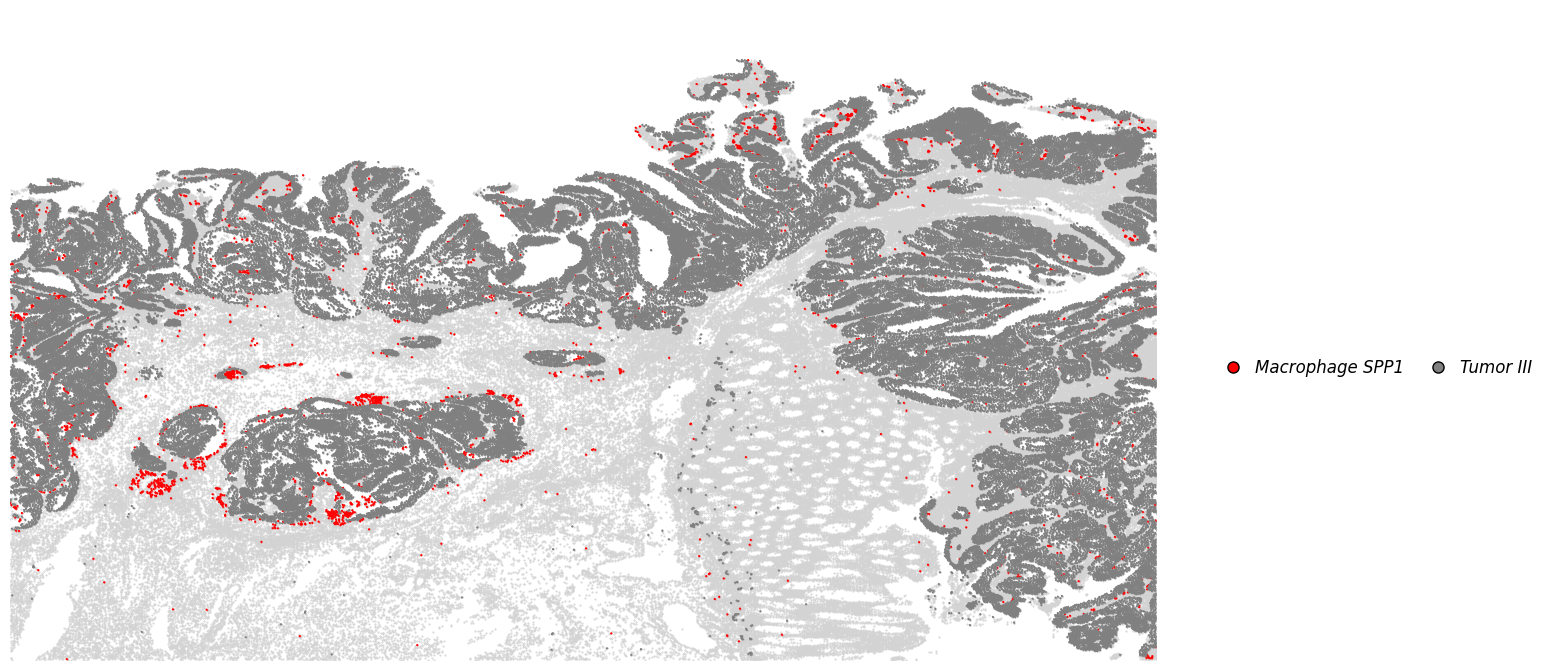

plot_dict_1 = plot_specific_celltype_gene(adata_svt, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

mapping_dict = {
    "Macrophage SELENOP": "#BC05D8",
    "Tumor_III all": "grey",
}

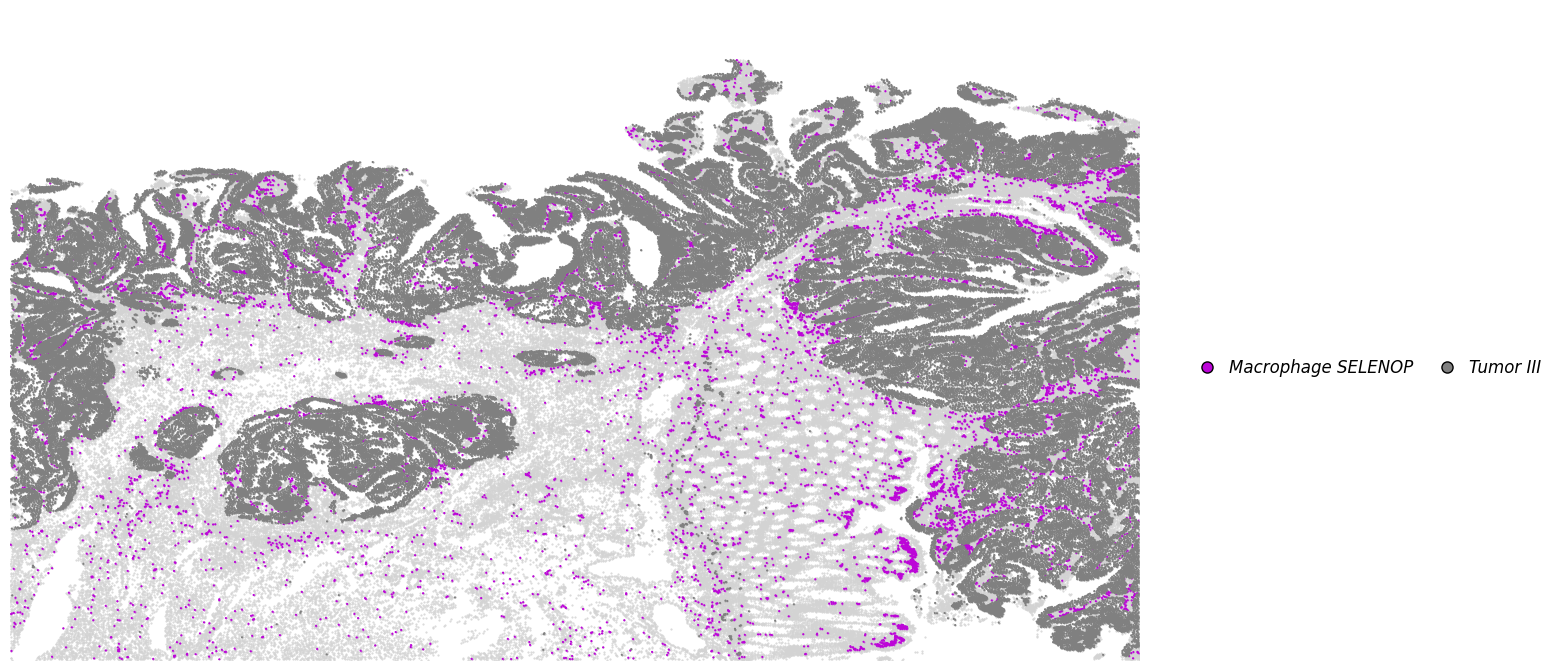

plot_dict_2 = plot_specific_celltype_gene(adata_svt, mapping_dict, x_col = "x", y_col = "y", s = 0.5, revert_y = False, revert_x= False)

adata_spp1 = plot_dict_1["Macrophage SPP1"].copy()
adata_spp1.obs["celltype"] = "Macrophage SPP1+"

c1 = adata_spp1[(adata_spp1.obs["x"] > 500) & (adata_spp1.obs["x"] < 1500) & (adata_spp1.obs["y"] < 1500) & (adata_spp1.obs["y"] > 300)].obs_names # .loc[:, "celltype"]= "Marophage SPP1+ Cluster 1"
c2 = adata_spp1[(adata_spp1.obs["x"] > 2400) & (adata_spp1.obs["x"] < 3500) & (adata_spp1.obs["y"] < 2500) & (adata_spp1.obs["y"] > 1500)].obs_names
adata_spp1.obs.loc[c1, "celltype"] = "Marophage SPP1+ Cluster 1"
adata_spp1.obs.loc[c2, "celltype"] = "Marophage SPP1+ Cluster 2"

adata_selenop = plot_dict_2["Macrophage SELENOP"].copy()
adata_selenop.obs["celltype"] = "Macrophage SELENOP+"



temp = anndata.concat([adata_spp1, adata_selenop])

selected_gene = [
    "SELENOP", "SPP1", "CD68", "CD14", "MMP12", "HMOX1", "APOE", "FN1",  "APOC1", "FBP1", "IL1RN", "LPL", "CHI3L1", "MMP7",
    "MPEG1", "MS4A6A", "FGL2", "SLC40A1", "STAB1", "IL7R", "APOC1", "SOD2"
]

gene_list = selected_gene
# As type categorical
temp.obs['celltype'] = temp.obs['celltype'].astype('category')
# All set to white
temp.uns["celltype_colors"] = ["#FFFFFF"] * len(np.unique(adata_plot.obs['celltype']))

# Only show invasive tumor and Prolif Invasive Tumor
with plt.rc_context({'font.size': 15}):

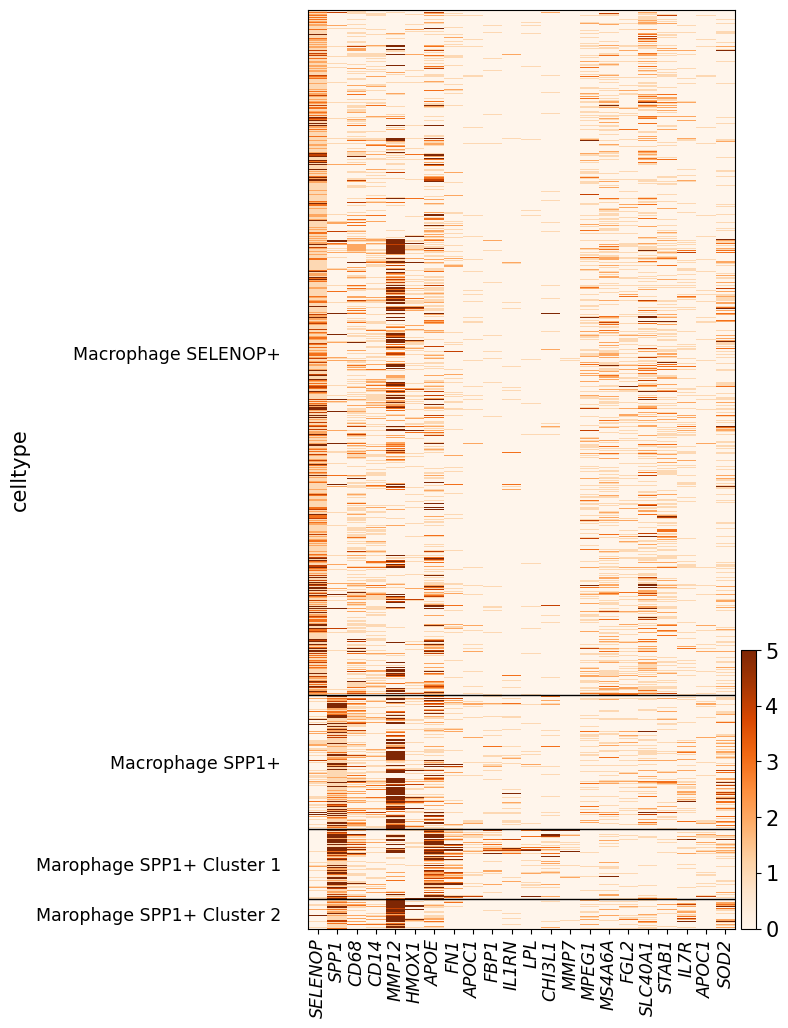

    hm = sc.pl.heatmap(temp, gene_list, groupby='celltype', cmap='Oranges', show_gene_labels=True, vmax=5, swap_axes=False, figsize=(6,12), show=False)
    # Delete groupby_ax
    ax = hm['heatmap_ax']
    for l in ax.get_xticklabels():
        l.set_style("italic")

    # Show with high dpi
    plt.show(block=True)

/home/yhchenmath/anaconda3/envs/cellseg/lib/python3.9/site-packages/anndata/_core/anndata.py:1906: UserWarning: Observation names are not unique. To make them unique, call `.obs_names_make_unique`.
  utils.warn_names_duplicates("obs")
